Unique Design Outdoor Fixed LED Display with Better Flatness P4
This outdoor Fixed LED display product has excellent heat dissipation performance, and it can be maintained in the front and back as well. Its all-weather durability and energy efficient design make it an ideal choice for permanent outdoor installations. The display type of this product is Outdoor Fixed LED Display, which means it is specifically designed for outdoor use and can withstand various weather conditions. It is suitable for a wide range of applications, including outdoor advertising, sports events, concerts, and Media Fixed Advertising Screens.
Applications:
● Outdoor Highway Toll Gate
● Outdoor Advertising Machines
● Media Fixed Advertising Screens
Product Features:
● D-PH4 outdoor full color module PCB board adopts international FR-4 board, and two layer circuit board design.
● LED lamp beads using crystal table 1921 package, white balance brightness ≥ 6000 nit.
● The driver IC adopts ICND2038S, and the visual refresh frequency is above ≥ 1920HZ.

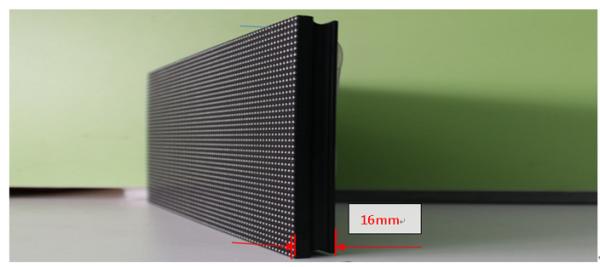

● Module size 320 * 160mm, unique design, compared with the market routine, the flatness is better.
● The module adopts blanking circuit design, built-in LED display screen residual elimination circuit (uplink residual)
And lamp bead short circuit, open series bright processing circuit (caterpillar processing phenomenon).
Key Parameters:
| Part Number | P4 | Part Number | P4 |
| Pixel Pitch | 4mm | Module Weight | ≤405g |
| LED Configuration | SMD 1921 | Decoding Mode | ICN2012 |
| Pixel Density | 62500dot/m2 | Input Voltage(DC) | 5V |
| Module Size | 320*160mm | Module Max. Current(Ampere) | ≤9A |
| Pixel Arrangement | 80*40 | Module Max. Power Consumption | ≤45W |
| Drive Mode | 1/10S | Operating Temperature | -20℃~+80℃ |
| Luminance | ≥6000cd/㎡ | Operating Humidity | 30%~85%RH |
| Driver Chip | ICND2038S | Viewing Angle (H/V) | 140°(±10°) |
| Refresh Frequency | ≥1920Hz | Viewing Angle (V/V) | 120°(±10°) |
